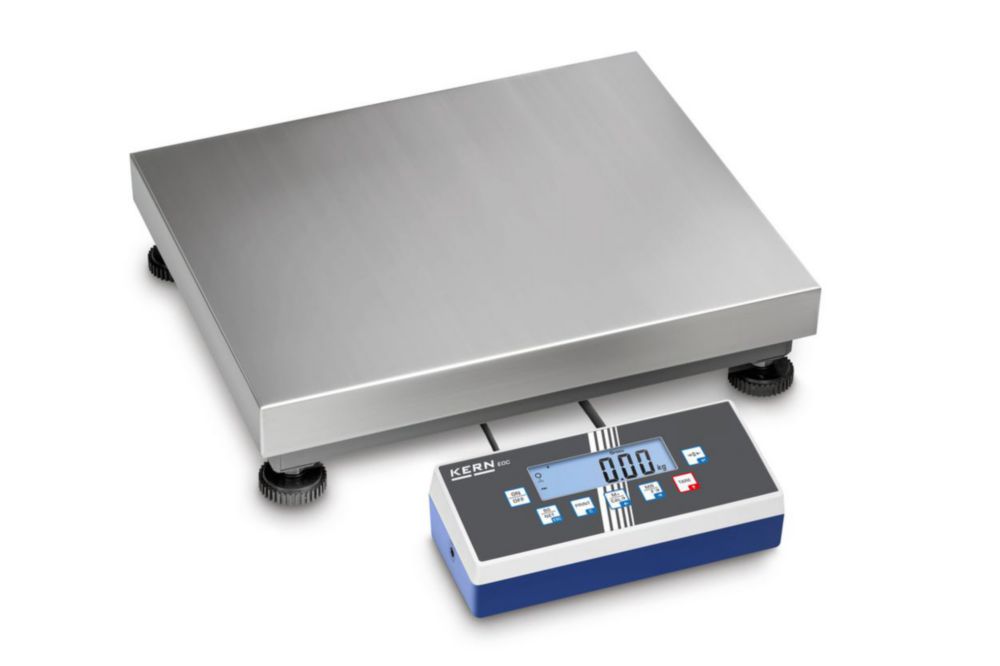

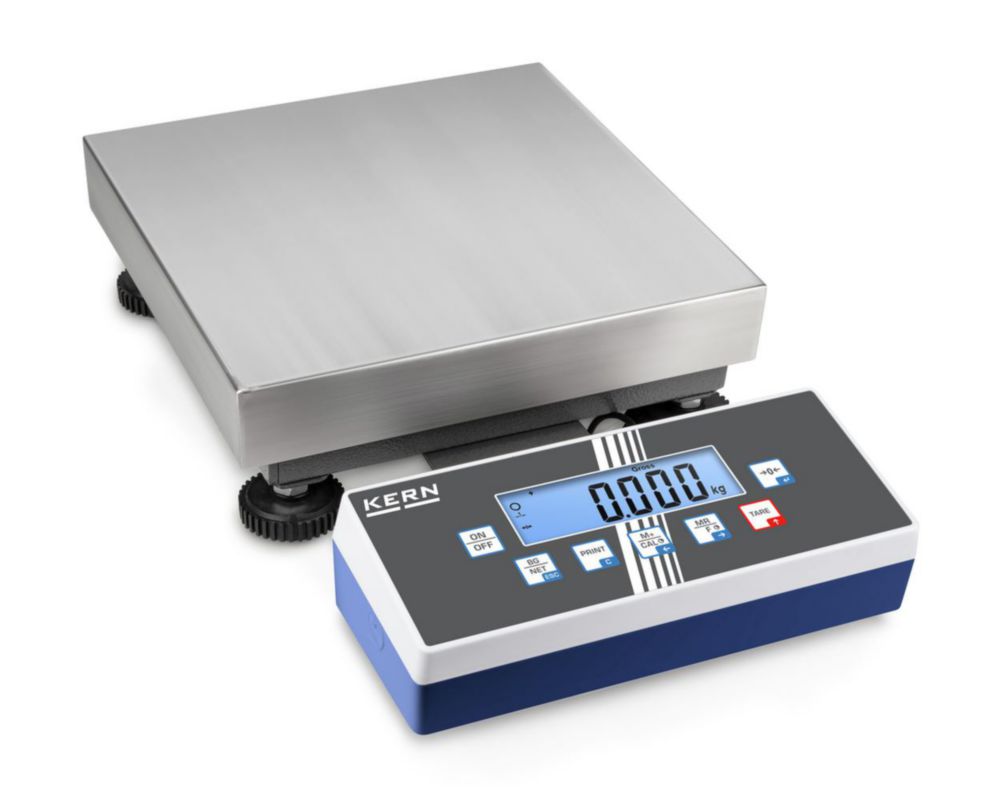

Platform scales EOC
Product number:
4660164
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Weight:
8.01 kg
Description
Thanks to rechargeable battery operation (optional), compact, lightweight construction, it is suitable for the use in several locations (laboratory, production, quality control, commissioning etc.). The KERN Communication Protocol (KCP) permits searching and remote control of the balance using external control devices or computers.
Scope of supply: Platform scale, benchtop stand incl. wall mount for display device, protective working cover
- Large backlit LCD display
- Weighing plate stainless steel, painted steel base
- Silicone-coated aluminium load cell
- Level indicator and levelling feet for precise levelling
- Flip/Flop display device (W×D×H): 268×115×80 mm
- Interfaces: RS-232
Scope of supply: Platform scale, benchtop stand incl. wall mount for display device, protective working cover
Properties
| Adjusting program: | External |
|---|---|
| Depth: | 300 mm |
| Depth weighing plate: | 300 mm |
| Dimensions (WxDxH): | 300 x 300 x 110 mm |
| Height: | 110 mm |
| Linearity: | ±0.015/0.03 kg |
| Manufacturer Article Number: | EOC 30K-3 |
| Material housing: | Plastic |
| Material weighing plate: | Stainless steel |
| Max. load: | 15/35 kg |
| Max. voltage: | 240 V |
| Min. voltage: | 100 V |
| Plug type: | EU/UK/CH |
| Power supply: | 100 ... 240 V |
| Readability: | 0.005/0.01 kg |
| Reproducibility: | 0.005/0.01 kg |
| Type: | EOC 30K-3 |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41111509 |
| Warranty: | 2 years |
| Weighing plate (WxD): | 300 x 300 mm |
| Weight: | 6 kg |
| Width: | 300 mm |
| Width weighing plate: | 300 mm |
