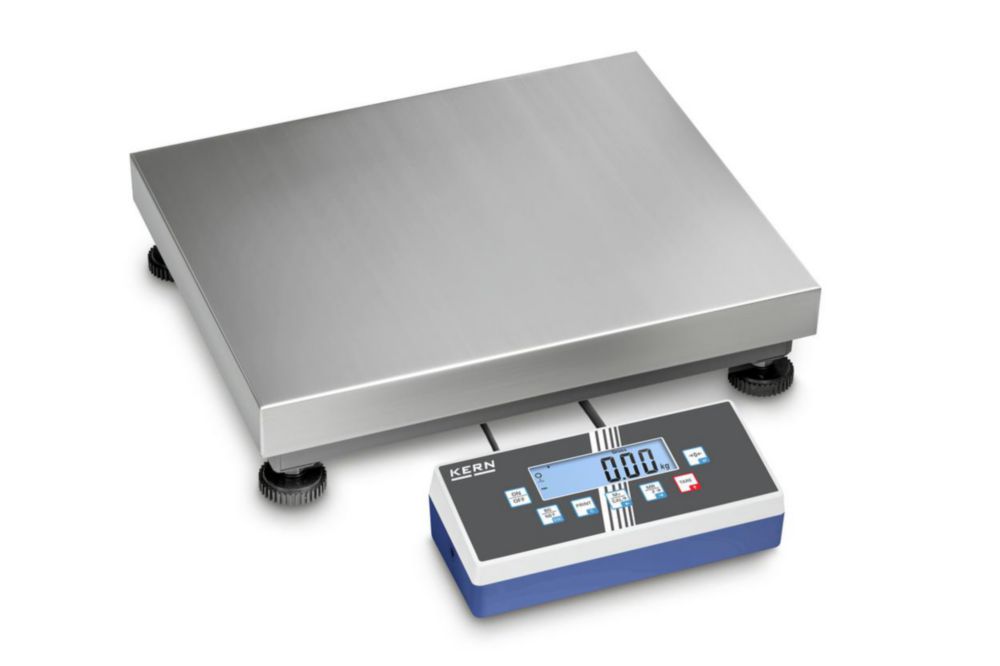

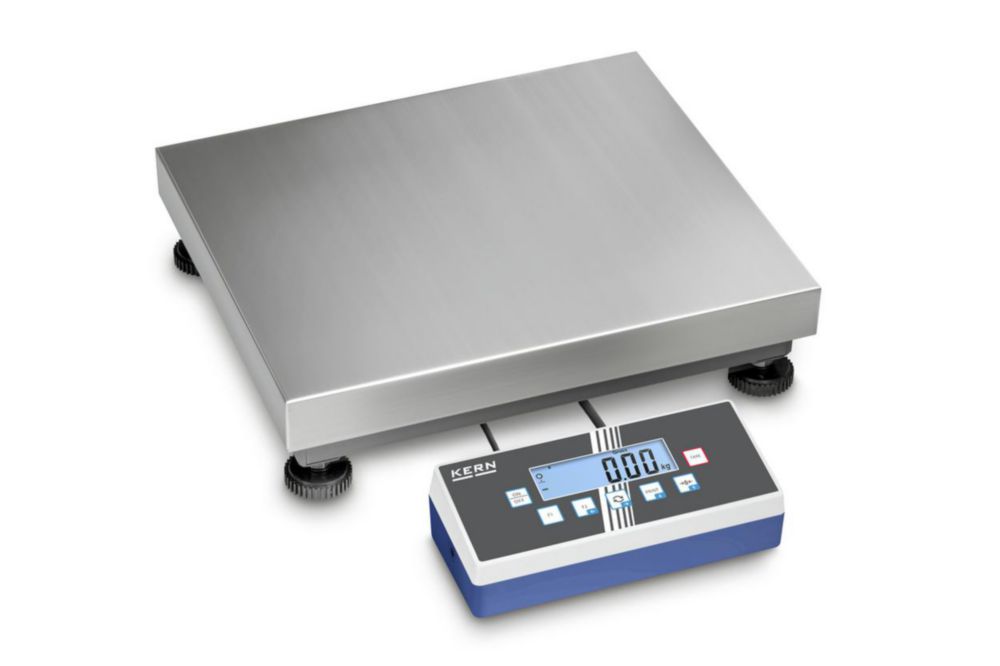

Platform scales IOC
Product number:
6313714
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Weight:
7.5 kg
Description
The KERN Communication Protocol (KCP) permits searching and remote control of the balance using external control devices or computers (only possible through data interface RS-232).
- Large LCD display
- Weighing plate stainless steel, painted steel base
- Silicone-coated aluminium load cell with protection against dust and water splashes IP65
- Level indicator and levelling feet for precise levelling
- Dimensions of display device (W×D×H): 268×115×80 mm
- Data interface RS-232
Properties
| Adjusting program: | External |
|---|---|
| Depth: | 300 mm |
| Depth weighing plate: | 300 mm |
| Dimensions (WxDxH): | 400 x 300 x 110 mm |
| Height: | 110 mm |
| IP code: | IP 65 |
| Linearity: | ±0.005/0.01 kg |
| Manufacturer Article Number: | IOC 30K-3M |
| Material housing: | Plastic |
| Material weighing plate: | Stainless steel |
| Max. load: | 15/30 kg |
| Max. voltage: | 240 V·AC |
| Min. voltage: | 100 V |
| Plug type: | EU/UK/US |
| Power supply: | 100 ... 240 V·AC, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Readability: | 0.005/0.01 kg |
| Reproducibility: | 0.005/0.01 kg |
| Type: | IOC 30K-3M |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41111509 |
| Verified calibration: | Verifiable |
| Warranty: | 2 years |
| Weighing plate (WxD): | 400 x 300 mm |
| Weight: | 8 kg |
| Width: | 400 mm |
| Width weighing plate: | 400 mm |
