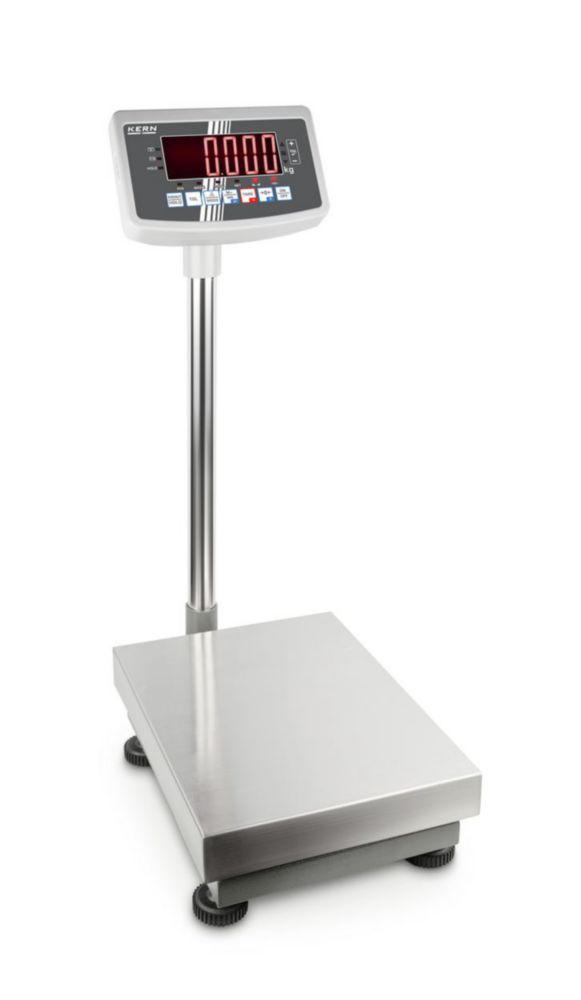

Platform scales EFC
Product number:
4709466
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Weight:
11 kg
Description
Thanks to rechargeable battery operation, compact, lightweight construction, it is suitable for the use in various locations (production, warehouse, dispatch department, etc.). A visual and audible signal helps with portioning, dispensing or grading.
- Bright LED display
- With column
- Weighing plate stainless steel, painted steel base
- RS-232 data interface
Properties
| Adjusting program: | External |
|---|---|
| Battery/rechargeable battery: | 3.7 V, Li Ion |
| Depth: | 400 mm |
| Depth weighing plate: | 400 mm |
| Dimensions (WxDxH): | 500 x 400 x 120 mm |
| Electrochemical system: | Li Ion |
| Height: | 120 mm |
| Linearity: | ±0.006 kg |
| Manufacturer Article Number: | EFC 30K-3L |
| Material housing: | Plastic |
| Material weighing plate: | Stainless steel |
| Max. load: | 30 kg |
| Max. voltage: | 240 V |
| Max. voltage battery/rechargeable battery: | 3.7 V |
| Min. voltage: | 100 V |
| Plug type: | EU/UK |
| Power supply: | 100 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Readability: | 0.002 kg |
| Reproducibility: | 0.002 kg |
| Type: | EFC 30K-3L |
| Type of auxiliary energy: | Mains connection/rechargeable battery |
| UNSPSC: | 41111509 |
| Warranty: | 2 years |
| Weighing plate (WxD): | 500 x 400 mm |
| Weight: | 11 kg |
| Width: | 500 mm |
| Width weighing plate: | 500 mm |
