Platform scales SXC, IoT-Line
Product number:
4711885
Manufacturer:
Kern & Sohn GmbH
Packaging information:
Description

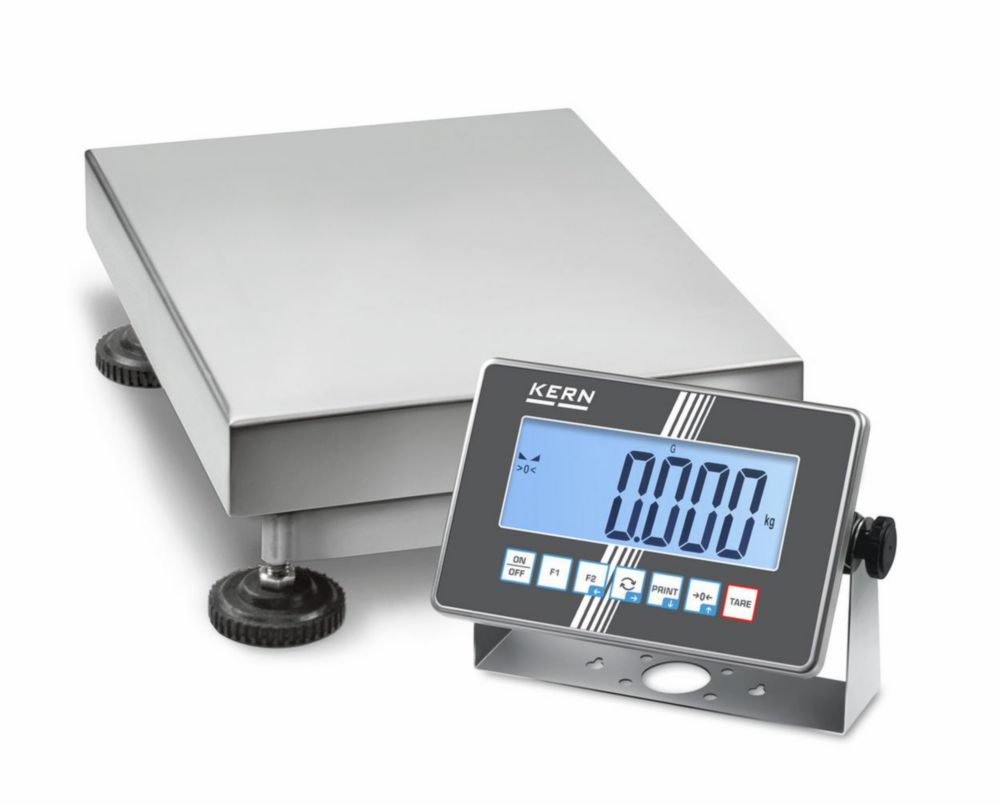

Stainless steel platform scale, with up to four data interfaces and optional alibi memory, for the increased hygienic requirements in the food industries. The KERN Communication Protocol (KCP) permits searching and remote control of the balance using external control devices or computers.
- Large backlit LCD display
- Platform made entirely of stainless steel, hermetically welded stainless steel load cell with protection against dust and water splashes IP68
- Display device: stainless steel, dust and splash water protection IP68
- Dimensions of display device (W×D×H): 232×150×80 mm
Properties
| Adjusting program: | External |
|---|---|
| Depth: | 400 mm |
| Depth weighing plate: | 400 mm |
| Dimensions (WxDxH): | 500 x 400 x 120 mm |
| Height: | 120 mm |
| IP code: | IP 68 |
| Linearity: | ±0,006 kg |
| Manufacturer Article Number: | SXC 30K-3L |
| Material housing: | Stainless steel |
| Material weighing plate: | Stainless steel |
| Max. load: | 30 kg |
| Max. voltage: | 240 V |
| Min. voltage: | 110 V |
| Plug type: | EU |
| Power supply: | 110 ... 240 V |
| Readability: | 0.002 kg |
| Reproducibility: | 0.002 kg |
| Type: | SXC 30K-3L |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41111509 |
| Verified calibration: | Not verifiable |
| Warranty: | 3 years |
| Weighing plate (WxD): | 500 x 400 mm |
| Weight: | 22 kg |
| Width: | 500 mm |
| Width weighing plate: | 500 mm |
